Lumi Touch Panel
Illuminex•LU-TOUCH
Equipment-Pad Control
Access your pool system directly at the equipment pad
10.1-Inch Touchscreen
Navigate equipment and settings from a large display
Wi-Fi & LAN Ready
Connect wirelessly or through a wired network
Plug-and-Play Setup
Designed for straightforward installation and daily use
Pricing
Available by Quote
Builder/Installer? to see your trade pricing.
Control Starts Here
Lumi Touch Panel
A smart control hub that connects your pool system directly from the equipment pad. The Lumi Touch Panel provides quick access to system controls, equipment settings, and on-site adjustments through a clean, built-in display.
Equipment-Pad Control
Access pool controls directly from the equipment pad.
10.1-Inch Touch Display
Large touchscreen interface for simple system navigation.
Wi-Fi / LAN Ready
Connect through Wi-Fi or a wired network setup for reliable access.
Plug-and-Play Design
Designed for straightforward installation and reliable daily operation.

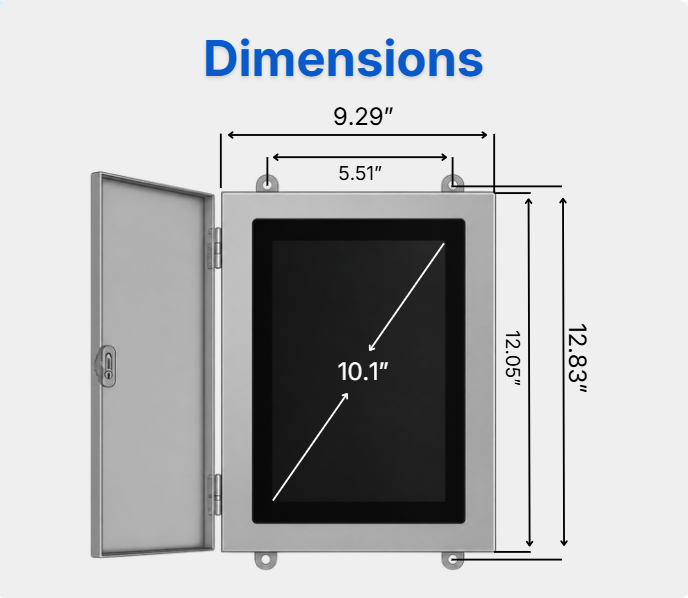

Dimensions
Lumi Touch Panel enclosure measurements.
Dimensions reflect the product enclosure including mounting tabs. Confirm physical fit at the equipment pad before installation.
Key Features
- Direct access and control at the equipment pad for faster adjustments and reliable operation
- 10.1-inch high-resolution touchscreen providing clear visibility and intuitive control
- Centralized control for compatible pumps, lights, heaters, salt systems, and other equipment
- Built for outdoor environments with a durable, lockable enclosure
Centralized control applies only to compatible connected equipment. Compatibility varies by product — confirm supported devices with your installer or Illuminex support.
Technical Specifications
| Model | LU-TOUCH |
| Brand | Illuminex |
| Category | Smart Controllers |
| Display | 10.1" high-resolution touchscreen |
| Connectivity | Wi-Fi & LAN |
| Housing | Stainless steel |
| Power Supply | 120V plug-in |
| Frequency | 60 Hz |
| Weight | 10 lb |
| Width (incl. tabs) | 9.29 in |
| Height (incl. tabs) | 12.83 in |
| Body width | 5.51 in |
| Body height | 12.05 in |
| Screen diagonal | 10.1 in |
| Environment | Outdoor equipment-pad use |
| Enclosure | Durable, lockable |
| Warranty | 1-year limited |
Current and amperage values are not currently verified and have been omitted until confirmed.
Connectivity, Power & Installation
The Lumi Touch Panel connects through Wi-Fi or a wired LAN connection and uses plug-in 120V power with a plug-and-play design. It is built for outdoor environments with a durable, lockable enclosure and is intended for installation at the pool equipment pad.
Mounting and installation should follow the product manual and applicable local electrical codes.
What's Included
- Lumi Touch Panel unit
- Power supply / cord
- Mounting hardware
- Quick start guide
Contents may vary — confirm with the product manual for your specific model.
Product Registration
Register your Lumi Touch Panel
Warranty and Support
1-year limited warranty & help
Frequently Asked Questions
LU-TOUCH is an on-site equipment-pad display. It provides a 10.1-inch touchscreen interface for viewing and adjusting compatible connected pool equipment directly at the pad. It is an interface for compatible connected equipment — not a pool automation system by itself, a heater controller, light controller, pump controller, portable tablet, or a replacement for every other Illuminex controller.
