AquaBright Plus RGBW Pool Light
10-Inch Wet Niche · 25 ft Cord
Illuminex·LU-ABP025
10" Wet-Niche Design
Full-size underwater lighting for compatible pool niches
RGBW Colour Lighting
Vivid colours, dedicated white and dynamic light shows
25 ft Factory Cord
Designed for installations with shorter cable routes
Quick Connector Design
Factory-installed connection for a cleaner installation
Price
$599 USD
Builder/Installer? to see your trade pricing.
The Illuminex AquaBright Plus RGBW Pool Light is a full-size ten-inch wet-niche underwater LED light engineered for larger pools. It combines vivid RGB colour with a dedicated white channel and supported dynamic colour shows, a clear tempered-glass lens, IP68-rated construction, and a factory-installed 25-foot cord with a quick connector for a cleaner installation. Lighting appearance and coverage depend on pool dimensions, surface colour, fixture placement and surrounding light.
Control is provided through a compatible Illuminex Light Controller (sold separately) or supported wall-switch operation. The light has no built-in Wi-Fi or Bluetooth — a compatible Illuminex controller is required for app-based control.
Professional Wet-Niche Pool-Light Installation
- Disconnect all electrical power before installation or servicing.
- Use a compatible pool-rated 12V AC transformer (sold separately).
- Never connect the light directly to household line voltage.
- Install only in a verified compatible ten-inch wet niche.
- Use approved pool-light wiring and connection methods.
- Fully seat and hand-tighten the factory quick connector locking ring.
- Make the wire connection inside an approved water-sealed compartment.
- Do not cut, splice, modify or remove the factory-installed quick connector.
- Follow the current AquaBright Plus installation manual.
- Follow applicable pool, electrical and local-code requirements.
- Have installation completed by a qualified pool or electrical professional.
- Do not operate the light outside the water — it relies on water for cooling.
What Is Included
AquaBright Plus RGBW Pool Light
10-inch RGBW LED wet-niche pool light with a clear tempered-glass lens and a factory-installed 25 ft cord with quick connector.
Sold separately
A compatible pool-rated 12V AC transformer, a compatible Illuminex Light Controller (LU-TXAUX200 or LU-LCW), and a compatible 10-inch wet niche are not included.
Choose the Right Cord Length
Compare the two AquaBright Plus cord options.
| Specification | LU-ABP025 AquaBright Plus — 25 ft Cord This Model | LU-ABP100 AquaBright Plus — 100 ft Cord |
|---|---|---|
| Factory cord | 25 ft | 100 ft |
| Fixture | 10-inch wet-niche fixture | 10-inch wet-niche fixture |
| Input voltage | 12V AC | 12V AC |
| Lighting | RGBW | RGBW |
| Current model | View Product → |
LU-ABP025
AquaBright Plus — 25 ft Cord
- Factory cord: 25 ft
- Fixture: 10-inch wet-niche fixture
- Input voltage: 12V AC
- Lighting: RGBW
LU-ABP100
AquaBright Plus — 100 ft Cord
- Factory cord: 100 ft
- Fixture: 10-inch wet-niche fixture
- Input voltage: 12V AC
- Lighting: RGBW
Choose a cord length that reaches the approved connection location while maintaining the service length required by the installation instructions. Do not cut or splice the factory cord.
Compare Illuminex Underwater Lights
See how AquaBright Plus compares across the Illuminex underwater-light family.
| Specification | LU-AG100 AquaGlow | LU-AB025 AquaBright Spa Light | LU-ABP100 AquaBright Plus | LU-PAR36 PAR36 Retrofit Light |
|---|---|---|---|---|
| Primary application | Pool lighting | Pool and spa lighting | Pool lighting (larger pools) | Pool and spa lighting |
| Installation type | 1.5-inch return fitting | 6-inch wet niche | 10-inch wet niche | PAR36 retrofit (compatible niche) |
| Fixture size | 1.5-inch return-fitting light | 6-inch wet-niche fixture | 10-inch wet-niche fixture | PAR36 lamp |
| Input voltage | 12V AC | 12V AC | 12V AC | 12V AC |
| RGBW capability | Yes | Yes | Yes | Yes |
| Cord options | 100 ft | 25 ft | 100 ft | — (fixture cord) |
| Compatible Illuminex controls | Compatible Illuminex controllers | Compatible Illuminex controllers | Compatible Illuminex controllers + wall switch | Compatible Illuminex controllers |

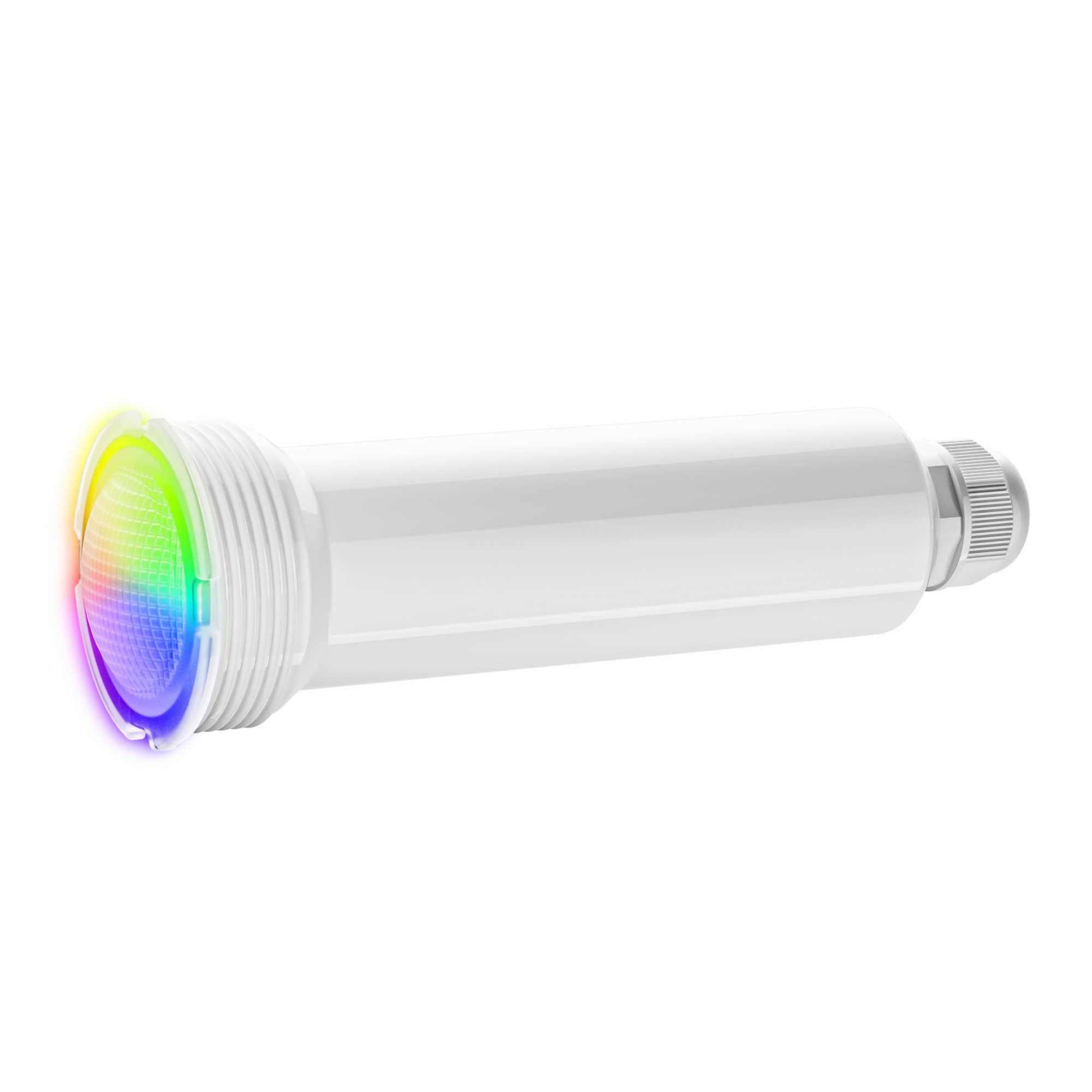

LU-AG100
AquaGlow
- Primary application: Pool lighting
- Installation type: 1.5-inch return fitting
- Fixture size: 1.5-inch return-fitting light
- Input voltage: 12V AC
- RGBW capability: Yes
- Cord options: 100 ft
- Compatible Illuminex controls: Compatible Illuminex controllers
LU-AB025
AquaBright Spa Light
- Primary application: Pool and spa lighting
- Installation type: 6-inch wet niche
- Fixture size: 6-inch wet-niche fixture
- Input voltage: 12V AC
- RGBW capability: Yes
- Cord options: 25 ft
- Compatible Illuminex controls: Compatible Illuminex controllers
LU-ABP100
AquaBright Plus
- Primary application: Pool lighting (larger pools)
- Installation type: 10-inch wet niche
- Fixture size: 10-inch wet-niche fixture
- Input voltage: 12V AC
- RGBW capability: Yes
- Cord options: 100 ft
- Compatible Illuminex controls: Compatible Illuminex controllers + wall switch
LU-PAR36
PAR36 Retrofit Light
- Primary application: Pool and spa lighting
- Installation type: PAR36 retrofit (compatible niche)
- Fixture size: PAR36 lamp
- Input voltage: 12V AC
- RGBW capability: Yes
- Cord options: — (fixture cord)
- Compatible Illuminex controls: Compatible Illuminex controllers
Complete Your Pool-Lighting System
Explore AquaBright Plus cord options and compatible Illuminex lighting controls.
